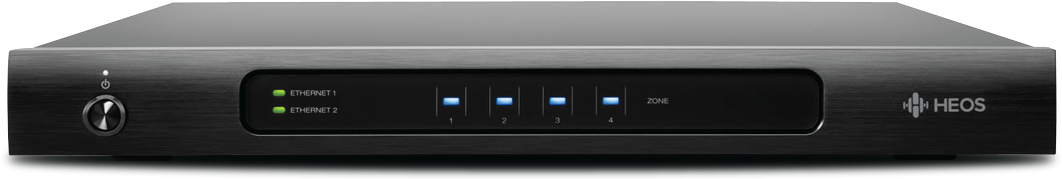

HEOS® by Denon® Black Multi-Zone Audio

Model #: HEOS SUPERLINK

$1,499.00

At a Glance

Specifically designed with the custom installer in mind—and building off the success of the HEOS Link—the Denon HEOS Super Link provides coverage to all four HEOS zones in a single 1U (1.75” tall) chassis. With robust, third party control from popular manufacturers including Control4, Crestron, RTI, URC and ELAN, the HEOS Super Link is customizable within almost any professional-quality home audio environment.

WarningProposition 65 Warning for California Residents
HEOS® by Denon® Black Multi-Zone Audio

Audio System

Pre-amp sectionDedicated pre-amplifier output for each zone including analogue and digital (optical/coaxial) outputs, to connect to an existing stereo system or an external power amplifier. Analogue pre-out is also switchable to an „LFE/Subwoofer“ configuration to connect a powered subwoofer in any zone.

Networking

Wired ConnectionConnect to the network using 1 of the 2 RJ-45 wired LAN ports.

Music Sources

Music Subscription ServicesThe HEOS app lets you choose from popular subscription streaming services including Spotify, TuneIn, SoundCloud, TIDAL, Deezer, Napster and Mood:Mix. More services will be added soon.
Internet Radio StationsStreaming AAC, MP3, WMA (via the TuneIn service)
Picture Formats SupportedHEOS Super Link supports JPG, PNG, BMP and GIF album art picture formats.
USB Drives SupportedHEOS Super Link offers 4 built-in USB ports. Music content on a USB drive can be played back in each of the HEOS Super Link's zones, or on any or all other HEOS players on your network.

Music Formats Supported

WMAUp to and including 192kbps
AAC and MP3Up to and including 320kbps
WAV, ALAC and FLACUp to and including 24-bit/192kHz
DSD2.8MHz, 5.6MHz

General Specs

Product Weight (lbs.)9.48
Depth (in.)15.12
Width (in.)16.93
Height (in.)1.97
Voltage100-240
MPNHEOSSUPERLINK
Color Finish NameBlack

General

Power Supply120 Volts AC, 50~60 Hz auto-switching
Weight9.48 lbs
Operating Temperature Range5°C~35°C
What's In The BoxHEOS Super Link, AC power cords, Ethernet Cable, Quick Start Guide, 2 rack ears
Multiple Language SupportEnglish, German, French, Spanish, Italian, Dutch, Russian, Swedish, Norwegian, Danish, Polish
Product FinishBlack
Controls and IndicatorsPower/standby; Ethernet status 1/2; Zones 1~4 active status
Dimensions (H x W x D)50 x 430 x 384 mm (without rack ears); 44 x 484 x 384 mm (with rack ears)

HEOS® by Denon® Black Multi-Zone Audio

Model #: HEOS SUPERLINK
811107
Model #: HEOS SUPERLINK
HEOS by Denon
$1,499.00

Available in Store Only

$1,499.00

At a Glance

Specifically designed with the custom installer in mind—and building off the success of the HEOS Link—the Denon HEOS Super Link provides coverage to all four HEOS zones in a single 1U (1.75” tall) chassis. With robust, third party control from popular manufacturers including Control4, Crestron, RTI, URC and ELAN, the HEOS Super Link is customizable within almost any professional-quality home audio environment.

Get to know this product.

Whole home multi-zone audio in a single chassis.

Each zone features a stereo pair of pre-amp outputs, and each zone can be configured for stereo or mixed mono output. The matrix switching system features 4 optical digital inputs, 4 coaxial digital inputs and 4 analog stereo inputs, any of which can be assigned to any zone, and every zone features a dedicated USB port for connection to an external USB drive.

Equipped to handle virtually any combination of speaker configurations, HEOS Super Link features built-in DSP high pass/low pass filters - set any output to full range, subwoofer or satellite speaker modes, with adjustable crossover points.

Dual RJ-45 Ethernet LAN ports are provided, for connection to the network and sharing the internet connection with other devices, and HEOS Super Link is 3rd party control compatible.

HEOS Super Link comes with removable feet and attachable rack ears, allowing rack or shelf placement.

Once installed and connected, HEOS Super Link setup and configuration is fast and easy via our HEOS app (iOS, Android and Kindle Fire).

Whole Home Multi-Zone Audio (4 HEOS Zones)

Pre-Amp Outputs for Each Zone, Including Dedicated Analog, Fiber Optic and Coaxial Outputs

Amazon Alexa Voice Integration

Dual RJ-45 Ethernet LAN Ports

Stereo/Mono Selectable Output

Only 1RU High; Removable Rack Ears Included

3rd Party Controllable

Dolby Digital/Dolby Digital+ Downmixing To Stereo

Multi-Room Sound

Every room can have its own HEOS sound. Or, group multiple speakers to fill the house with the same song. Multi-room means multiple options.

Apps & Streaming Services

Cloud music, streaming music and your music library—all your favorite sources are supported by this amazing HEOS app.

Amazing Sound Quality

It's no accident that HEOS devices produce pristine sound. They are engineered by the experts at Denon, innovators in audio for more than 100 years.

Easy Setup

It's amazing how quickly you can start listening through your HEOS devices. Connect your speakers, and you will be listening to music in minutes. It's really that simple.

Amazon Alexa Voice Control

Use your voice to stream your favorite music services to this HEOS-enabled device. Ask Alexa to play music from Pandora, Spotify, Amazon Music and much more. Switch between inputs (Blu-ray, DVD, Media Player, etc.), turn volume up or down, pause, mute and play the next song — all with your voice.

To start streaming with Alexa voice commands, open the Alexa app and select “Skills.” Add HEOS Home Entertainment to enable. Then, go to Smart Home in the Alexa app menu and choose Devices and Discover or say “Alexa, discover my devices.”

With HEOS Home Entertainment and Alexa, you can stream to this product and any other HEOS-enabled device.

Google Assistant Voice Control

Ask your Google Home, Google app or other devices with Google Assistant built-in to control content across your listening environment. Start music in the HEOS app, then ask your Google Assistant to control volume, play, pause, skip tracks and more. ‘Works with the Google Assistant’ feature is always improving — further enhancements arrive in 2019.

Josh.ai Smart Home Voice Automation

An elevated voice agent for the high-end smart home, Josh.ai offers flexible voice control for nearly any aspect of your day-to-day experience and entertainment environment. Use voice commands to control the thermostat, lights, home appliances, speakers, AVR and more. Josh.ai is installed by custom integrators and accessed through an app on your phone or tablet. Works with iOS and Android devices.

Keypoints

Designed by CI specialists for Custom Integration professionals

Create 4 separate HEOS zones

Dedicated pre-amplifier output for each zone

Analog, optical and coaxial outputs for each zone

Now available – control with Amazon Alexa voice commands.

Specifications

General Specs

Product Weight (lbs.)9.48
Depth (in.)15.12
Width (in.)16.93
Height (in.)1.97
Voltage100-240
MPNHEOSSUPERLINK
Color Finish NameBlack

Audio System

Pre-amp sectionDedicated pre-amplifier output for each zone including analogue and digital (optical/coaxial) outputs, to connect to an existing stereo system or an external power amplifier. Analogue pre-out is also switchable to an „LFE/Subwoofer“ configuration to connect a powered subwoofer in any zone.

Music Sources

Music Subscription ServicesThe HEOS app lets you choose from popular subscription streaming services including Spotify, TuneIn, SoundCloud, TIDAL, Deezer, Napster and Mood:Mix. More services will be added soon.
Internet Radio StationsStreaming AAC, MP3, WMA (via the TuneIn service)
Picture Formats SupportedHEOS Super Link supports JPG, PNG, BMP and GIF album art picture formats.
USB Drives SupportedHEOS Super Link offers 4 built-in USB ports. Music content on a USB drive can be played back in each of the HEOS Super Link's zones, or on any or all other HEOS players on your network.

Music Formats Supported

WMAUp to and including 192kbps
AAC and MP3Up to and including 320kbps
WAV, ALAC and FLACUp to and including 24-bit/192kHz
DSD2.8MHz, 5.6MHz

Networking

Wired ConnectionConnect to the network using 1 of the 2 RJ-45 wired LAN ports.

General

Power Supply120 Volts AC, 50~60 Hz auto-switching
Weight9.48 lbs
Operating Temperature Range5°C~35°C
What's In The BoxHEOS Super Link, AC power cords, Ethernet Cable, Quick Start Guide, 2 rack ears
Multiple Language SupportEnglish, German, French, Spanish, Italian, Dutch, Russian, Swedish, Norwegian, Danish, Polish
Product FinishBlack
Controls and IndicatorsPower/standby; Ethernet status 1/2; Zones 1~4 active status
Dimensions (H x W x D)50 x 430 x 384 mm (without rack ears); 44 x 484 x 384 mm (with rack ears)
