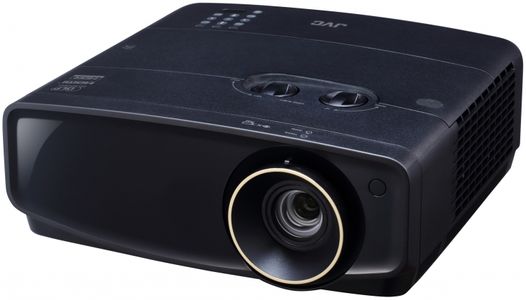

JVC Procision LX-UH1B Black DLP Projector

Model #: LX-UH1B

$2,499.95

At a Glance

The LX-UH1 is a high-performance 4K UHD/HDR home theater projector with compact design and wide lens shift for easy installation; also thanks to its 2,000-lumen output there is no need to always pull the curtain. This projector is ideal for all your broadcast, streaming and BD viewing.

WarningProposition 65 Warning for California Residents
JVC Procision LX-UH1B Black DLP Projector

Video input terminals (back panel)

PC1 (D-sub 15pin)

Control terminals

RS232C1 (D-sub 9-pin)

General

Noise level29 dB (Eco)/ 33 dB (Normal)
Power requirementAC110 V-240 V, 50/60 Hz
Dimensions: W x H x D, mm333 x 135 x 331.5 mm
Dimensions: W x H x D, inches13-1/8 x 5-5/16 x 13-1/16
Weight, kg4.8
Weight, lbs10.56


Device0.47" DMD (1920 x 1080)
Resolution3840 x 2160
Lens shift function+/-60% vertical & +/-23% horizontal, motorized
Light source lampNSH 240 W
Lamp lifeApprox. 4,000 hours in normal mode, 10,000 hours in eco mode
Brightness2,000 lm
Contrast RatioDynamic: 100,000:1

General Specs

Product Weight (lbs.)10.56
Depth (in.)13.06
Width (in.)13.13
Height (in.)5.31
Lamp Life4000
Brightness2,000 lm
Vertical Keystone CorrectionYes
Resolution3840 x 2160
Color Finish NameBlack
Projector Brightness2000

JVC Procision LX-UH1B Black DLP Projector

Model #: LX-UH1B
407513
Model #: LX-UH1B
JVC Procision
$2,499.95

Available in Store Only

$2,499.95

OTHER FINISHES AVAILABLE

At a Glance

The LX-UH1 is a high-performance 4K UHD/HDR home theater projector with compact design and wide lens shift for easy installation; also thanks to its 2,000-lumen output there is no need to always pull the curtain. This projector is ideal for all your broadcast, streaming and BD viewing.

Get to know this product.

Compact design for installation convenience: just 33 cm by 33 cm, and less than 13.5 cm high (Approx. 13" by 13", and 5.3" in height)

Compatible with HDMI standards (4K/60P 4:4:4) and HDCP 2.2

4K input specs: Supports 4K/60p, 4:4:4/36bit, 4K/60p 4:2:2/36bit, and 4K/24p 4:4:4/36bit signals - for more vivid colors and subtle gradations

4K resolution (3840 x 2160) achieved

Connectors: PC in, HDMI 1 with HDCP2.2 support, HDMI 2, USB Mini B, Trigger (12 V), USB Mini A (1.5 A power supply), and RS-232

0.47-inch DMD for bright high-definition 4k images

Dynamic contrast ratio: 100,000:1

Brightness: 2,000 lm

100% coverage of Rec. 709 gamut

Wide lens shift function: +/-60% vertical, +/-23% horizontal

1.6x high-resolution lens

HDR (high dynamic range) for more realistic, dynamic images

HDCP2.2 compatibility with HDMI 1 terminal to support video-streaming services and copyright-protected content including UHD BD discs

Available in 2 colors (black and white)

Specifications

General Specs

Product Weight (lbs.)10.56
Depth (in.)13.06
Width (in.)13.13
Height (in.)5.31
Lamp Life4000
Brightness2,000 lm
Vertical Keystone CorrectionYes
Resolution3840 x 2160
Color Finish NameBlack
Projector Brightness2000


Device0.47" DMD (1920 x 1080)
Resolution3840 x 2160
Lens shift function+/-60% vertical & +/-23% horizontal, motorized
Light source lampNSH 240 W
Lamp lifeApprox. 4,000 hours in normal mode, 10,000 hours in eco mode
Brightness2,000 lm
Contrast RatioDynamic: 100,000:1

Video input terminals (back panel)

PC1 (D-sub 15pin)

Control terminals

RS232C1 (D-sub 9-pin)

General

Noise level29 dB (Eco)/ 33 dB (Normal)
Power requirementAC110 V-240 V, 50/60 Hz
Dimensions: W x H x D, mm333 x 135 x 331.5 mm
Dimensions: W x H x D, inches13-1/8 x 5-5/16 x 13-1/16
Weight, kg4.8
Weight, lbs10.56
