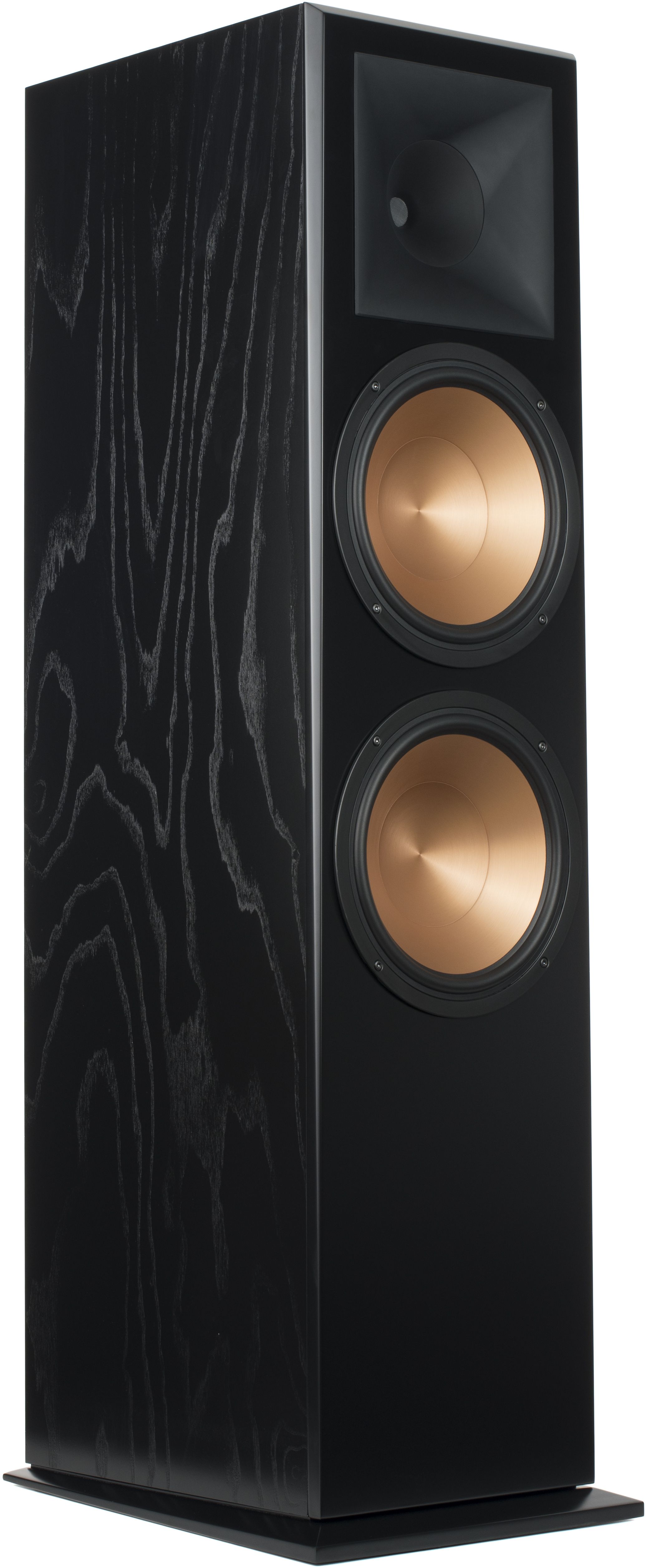

Klipsch® Reference™ 10" Floor Standing Speaker

Model #: RF-7 III-ASH

$1,799.00

At a Glance

Klipsch® Reference™ 10" Floor Standing Speaker with dual tractrix ports and titanium compression driver

WarningProposition 65 Warning for California Residents
Klipsch® Reference™ 10" Floor Standing Speaker

Other

Crossover Type1300Hz
Sold AsEach

Specifications

Sensitivity100 dB @ 2.83V / 1M
Speaker TypeFloor-standing Loudspeaker

Construction

Enclosure TypeDual Chambered, Bass Reflex - Via Dual Rear-Firing Tractrix Ports
Tweeter CompositionTitanium
Woofer CompositionCerametallic™ Cone

General Specs

Product Weight (lbs.)97
RMS Power Handling (Watts)1000
ColorBlack
Impedance8 Ohms Compatible
Maximum Power Handling (Watts)1000
Number of Speakers1
Depth (in.)17.88
Height (in.)49
Width (in.)13.88
Woofer Size10" x 2

Klipsch® Reference™ 10" Floor Standing Speaker

Model #: RF-7 III-ASH
132977
Model #: RF-7 III-ASH
Klipsch
$1,799.00

Available in Store Only

$1,799.00

OTHER FINISHES AVAILABLE

At a Glance

Klipsch® Reference™ 10" Floor Standing Speaker with dual tractrix ports and titanium compression driver

Get to know this product.

Featuring an all-new titanium compression driver, 90x90 compressed molded-rubber Tractrix horn, redesigned bifurcated cabinet, cast basket Cerametallic woofers and finished in a premium, furniture-grade wood veneer - the RF-7 III floor standing speaker champions our legendary, high-performance Klipsch sound.

    All-New 1.75" Titanium Compression Driver

    90x90 Compressed Molded-Rubber Tractrix Horn

    Redesigned Bifurcated Cabinet

    Dual Tractrix Ports

    Dual 10" Cast Basket Cerametallic Woofers

    Premium Furniture-Grade Wood Veneers

    Assembled in Hope, AR

90° X 90° Tractrix® Horn

The redesigned Tractrix Horn utilizes a circular horn throat paired to a square horn mouth to further improve high-frequency response and extension, while enhancing imaging and dynamics. The compressed molded rubber construction adds high frequency damping to reduce harshness and improve detail. This creates the cleanest, most natural sound possible.

All-New Driving Force 1.75" Titanium Diaphragm Compression Driver

The compression driver features a new phase plug design to improve phase coherency at the throat of the horn, resulting in improved sound pressure linearity at high frequencies.

Spun Copper Cerametallic Woofers™

Cerametallic woofers represent the pinnacle of Klipsch driver design, maintaining exceptional rigidity, and lightweight construction, for minimal cone breakup and distortion. When paired with the Tractrix horn-loaded compression driver, it provides speaker efficiency highest in its class.

New Dual Chamber + Tractrix® Port

The RF-7 III new bifurcated enclosure allows each 10” driver and port to work independently from the other. This improves the linearity of both drive systems, and minimizes standing wave problems inside the cabinet that can cause frequency anomalies in the sensitive midrange frequencies.

Utilizing Tractrix geometry, the new RF-7 III ports allow for the most efficient air transfer from the cabinet — for the cleanest, most powerful low frequency response on the market.

Cast Frame Woofer Design

Each 10” woofer feature a heavy-duty cast aluminum frame for resonant-free operation. In addition, each woofer incorporates a dual shorting-ring magnet structure design to eliminate modulation of the magnetic flux resulting in improved linearity of cone movement.

Furniture Grade Wood Veneers

The RF-7 III floor standing speaker enclosures all utilize furniture grade wood veneers, and are available in Black Ash, Cherry & Walnut.

Designed & Assembled in America

These speakers are built to rigid Klipsch standards — the toughest in the industry. Remember great sound? We do, too. These speakers are Designed & Assembled in the USA, by proud craftsmen in Hope, Arkansas.

Useful Documents
Specifications

General Specs

Product Weight (lbs.)97
RMS Power Handling (Watts)1000
ColorBlack
Impedance8 Ohms Compatible
Maximum Power Handling (Watts)1000
Number of Speakers1
Depth (in.)17.88
Height (in.)49
Width (in.)13.88
Woofer Size10" x 2

Construction

Enclosure Type:Dual Chambered, Bass Reflex - Via Dual Rear-Firing Tractrix Ports
Tweeter Composition:Titanium
Woofer Composition:Cerametallic™ Cone

Other

Crossover Type:1300Hz
Sold As:Each

Specifications

Sensitivity:100 dB @ 2.83V / 1M
Speaker Type:Floor-standing Loudspeaker
