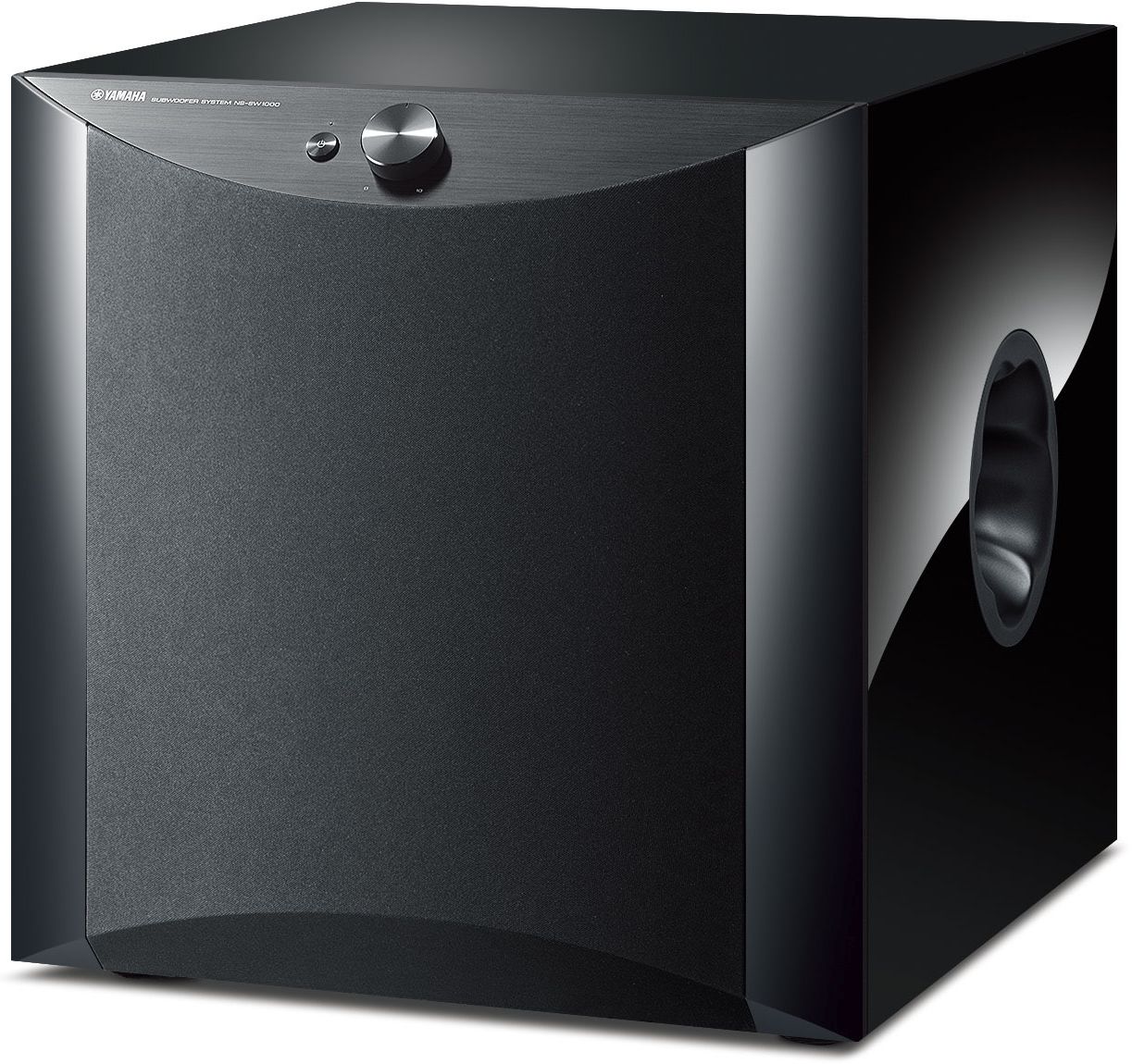

Yamaha® 12" Piano Black Powered Subwoofer

Model #: NS-SW1000PN

$1,999.95

At a Glance

Introducing the completely and beautifully evolved Yamaha premium subwoofer. Delivering uncompromised performance and preserving every detail, the NS-SW1000 adds dramatic richness to your audiophile grade audio system. Reminiscent of a Yamaha grand piano, the gloss black finish adds a touch of elegance to any living space.

WarningProposition 65 Warning for California Residents
Yamaha® 12" Piano Black Powered Subwoofer

Other

Sold AsEach

Styling

ColorPiano Black

Features

Volume ControlYes
Phase SwitchYes

Specifications

Speaker TypeSubWoofer
Frequency Response18–160 Hz

General Specs

Product Weight (lbs.)90.4
ColorBlack
Depth (in.)20.63
Width (in.)17.38
Height (in.)18.19
Woofer Size12"
Speaker TypePowered Subwoofers
Color Finish NamePiano Black
Speaker Size12
Subwoofer Size12"

Yamaha® 12" Piano Black Powered Subwoofer

Model #: NS-SW1000PN
76323
Model #: NS-SW1000PN
Yamaha
$1,999.95

Available in Store Only

$1,999.95

At a Glance

Introducing the completely and beautifully evolved Yamaha premium subwoofer. Delivering uncompromised performance and preserving every detail, the NS-SW1000 adds dramatic richness to your audiophile grade audio system. Reminiscent of a Yamaha grand piano, the gloss black finish adds a touch of elegance to any living space.

Get to know this product.

1,000 watt digital power amplifier with a high current MOSFET discrete output stage

Unique Twisted Flare Port produces clear and tight bass

Three-way mitered construction joints

Optimally designed semi-pressed paper cone with Kevlar® fibers

Yamaha Advanced YST II for accurate bass response

Large 12" woofer with double magnet and double damper

System control and auto standby

1,000 Watt Digital Power Amplifier with a High Current MOSFET Discrete Output Stage

The NS-SW1000 is powered with a 1,000 watt digital amplifier featuring the all-new Yamaha DP200 digital amplifier IC and a high current MOSFET discrete push-pull output stage. Meticulous sound tuning includes the use of a luxurious triple-wound litz wire, high-capacity output coil and capacitors designed for high performance audio.

Unique Twisted Flare Port Produces Clear and Tight Bass

The Twisted Flare Port takes advantage of extensive subwoofer development experience. The flared, gently twisting shape diffuses the vortex of air generated around the edge of the port, creating a smooth flow of air. This reduces extraneous noise not present in the original input signal and provides clear, accurate low frequency.

Built for Powerful, Accurate Sound Reproduction with an Innovative Cabinet Design

Thanks to excellence in woodworking, Yamaha designed the cabinet of the NS-SW1000 with three-way mitered construction joints. This technique ensures extremely tight joints so the entire cabinet behaves as a single unit, providing tight, powerful and accurate bass reproduction. The cabinet employs a heavy bass reflex enclosure constructed of thick 36 mm MDF (medium-density fiberboard) on the baffle sides and 25 mm MDF on the other sides. The strong anti-resonant structure with cast-iron legs and a front-firing woofer deliver uncompromised sound perfect for any high-end audio system.

Optimally Designed Semi-pressed Paper Cone with Kevlar® Fibers

The specially designed woofer diaphragm is semi-pressed paper incorporating Kevlar fibers for strength and optimal internal losses. Developed specifically for this model for peak performance.

Yamaha Advanced YST II For Awesome Deep Bass

For accurate bass response, the NS-SW1000 features Advanced Yamaha Active Servo Technology II. This proprietary technology dynamically compensates for the negative effects of speaker impedance to maintain excellent control and perfect linearity for superior sound quality.

Large 12" Woofer with Double Magnet and Double Damper

To achieve long-stroke drive with its superior linearity, the NS-SW1000 uses a 12" woofer unit with a strong, flexible drive system employing two stacked large diameter ferrite magnets and a double damper with an air vent. The frame is high strength aluminum die cast to suppress unwanted resonance even at high volume, making it possible to reproduce delicate tonal nuances.

System Control and Auto Standby

The system control terminal can be linked to the amplifier power to automatically turn the power on and off. There is also an Auto Standby Function: if no signal is input from the amplifier for a fixed period, it automatically switches to the standby state, and when a signal from the amplifier is detected, power turns on automatically.

Useful Documents
Specifications

General Specs

Product Weight (lbs.)90.4
ColorBlack
Depth (in.)20.63
Width (in.)17.38
Height (in.)18.19
Woofer Size12"
Speaker TypePowered Subwoofers
Color Finish NamePiano Black
Speaker Size12
Subwoofer Size12"

Features

Volume Control:Yes
Phase Switch:Yes

Other

Sold As:Each

Specifications

Speaker Type:SubWoofer
Frequency Response:18–160 Hz

Styling

Color:Piano Black
