A piano comes into this world through the perfect synergy of advanced technical skill and artistry. Such a piano can create sound that truly reflects the player's feelings.
The final stage in piano production is called “voicing.” This breathes life into the instrument and truly makes it musical. To accomplish this, highly skilled experts focus their concentration and sensitivity completely on each note and delicately adjust the hardness and resilience of the hammers that strike the strings, establishing the perfect, consistent sound for the entire instrument and determining its tonal personality.
Yamaha brings this exact same approach and process to its audio products. Our experienced technicians perform exhaustive listening tests and strictly consider every single element and component, to draw closer—step by meticulous step—to the ideal sound.
Introducing the S3000 Series, the absolute culmination of hi-fidelity audio. Yamaha knows all about sound and even more about music, and has brought all its rich artistic sensitivity into the creation of this line.
All the energy and finely nuanced technique of the artist, all the power and subtlety of the original music is fully reproduced, with absolutely nothing left out. The result is a remarkably pure sound—powerfully expressive and exquisitely profound.
Beautiful and elegant in appearance, sturdy and reliable in construction, created with the latest, innovative technology and genuine craftsmanship—all nurtured by our long experience in the manufacture of musical instruments.
Yamaha proudly offers this new high-end lineup, delivering supreme quality in every way. This is the manifestation of our passion to give music lovers the ultimate in listening enjoyment—a tradition we've been carrying on and advancing for more than 125 years.

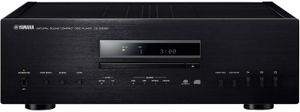

The CD-S3000 was created with meticulous care to ensure rigidity with superior vibration control properties and ultra-precise reading — to draw out all the music recorded to the disc. Incorporated is a newly designed drive mechanism with added heavy anchors for an original Yamaha loader mechanism. Installing it on the chassis through the heavy anchors in front of and behind the loader mechanism achieves the highest rigidity and blocks the effects of vibrations from outside. At the same time, it also prevents vibration caused by rotation of the disc from affecting the circuit board. The anchor on the front features two layers and a screw-based adjustment mechanism. This allows for highly precise adjustment of the horizontal level of the front-back and left-right sides of the loader mechanism. Each CD-S3000 unit is assembled by first attaching the drive mechanism to the chassis, then carefully performing minute horizontal adjustments. While this process is time-consuming and labor-intensive, it demonstrates the genuine desire of Yamaha to realize the ultimate in precise signal reading. These efforts eliminate any minute tilting of the mechanism, achieving stable rotation and ultra-precise signal reading. Reducing the load of the servo which drives the pickup, in order to minimize the impact of servo current changes to the signal, provides a clean signal output that is virtually unaffected by noise. In addition, the loader mechanism has a structure in which a highly rigid chassis designed for integration with the loader mechanism supports the entire CD drive. Moreover, only the strictest selection of parts was applied for the pickup, which aims a beam of light at the disc as it rotates at high speed to read the signals and a drive mechanism which stably rotates the disc. This is how audio data on the disc is read with high precision to achieve the highest purity in reproduction.
The CD tray is made of high-rigidity aluminum, reducing secondary vibrations due to resonance of the disc and the high-speed motor rotating the disc, resulting in improved audio signal-reading precision and quieter operation. In addition to the smart design and luxurious texture, we’ve fine-tuned the opening/closing action by adding a specially-designed meshed wire drive, achieving smoother and gentler operation. We obsessively strove to give the unit a luxurious operating feel that perfectly matches the superior sound quality.
The main chassis, which supports the loader mechanism, was also made as strong as possible, and reinforcing each part improved the rigidity of the chassis itself. Moreover, the front panel is made of 0.28” thick aluminium, contributing to the high rigidity of the entire chassis. The unit is constructed by placing the loader mechanism, which is a rotating body, in the center, then placing the digital power supply and circuit board on its left, and the analog power supply and circuit board on its right, to achieve a total symmetrical structure with the digital and analog parts separated, achieving the ideal weight balance. Finally, to minimize impedance as much as possible, the bottom chassis, which is the standard ground, has been copper plated.
The insulators are crucial parts that block outside vibrations. They adopt original Yamaha metal legs in order to maximize vibration control performance. The user can select point installation by applying the supplied spikes or plane insulation with the supplied pads and use these combined with an interlocking rack if desired.
The CD-S3000 has adopted a twin power transformer method, which completely separates the digital and analog circuits from the power supply and equips each with its own dedicated power transformer. Separating the digital/analog circuits from the transformer eliminates sound quality deterioration caused by interference and noise between the digital and analog circuit blocks, which occur when there is one digital/analog power supply. This results in exceptionally clear and low-noise reproduction of analog audio. The power transformer is a toroidal transformer with low magnetic leakage which, for both the digital and the analog units, lowers adverse impact on the signal read from the disc. Following detailed research based on trial listening, we enclosed the power transformer in a copper-plated case, in order to reduce the impact of magnetic leakage and vibration. This realizes a gentle, calm and even spacious sound, due to enhanced reproduction of detailed signals. This is one of the main aims of the S3000 series, to make sure that even gentle, soft sounds, such as those of stringed instruments, are reproduced accurately with rich, expressive power.
The internal design of the CD-S3000 does not separate the power supply circuit boards, which include the power transformer; the block capacitors are mounted directly on the respective digital/analog circuit boards. Thus, an original board configuration which integrates the power supply circuits was adopted. Eliminating cabling from the power supply circuits to each circuit board and mounting directly have the benefit of reducing connection loss, as well as achieving low impedance. Moreover, cabling from the power transformer utilizes the same screw-type connections we’ve given the companion A-S3000 Integrated Amplifier. Connecting directly without soldering achieves thorough contact point loss and low impedances.
To thoroughly eliminate audio signal loss, the CD-S3000 adopts an innovative circuit configuration for the analog circuit. The signal from the D/A converter is conventionally output as an analog signal through an I/V conversion circuit configured in multiple stages. However, in the CD-S3000, the signal is output by a single-stage configuration based on a discrete design of the I/V conversion circuit. This single-stage configuration with high slew-rate sharply lowers audio signal loss compared to a multi-stage configuration circuit and lowers NFB (Negative Feedback), eliminating any sonic suppression, resulting in a natural, spacious sound. The circuits beyond these D/A converters perform balanced transmission with a circuit configuration marked by symmetrical plus and minus sides. Using a balanced connection with the A-S3000 Natural Sound Integrated Amplifier lets you enjoy profoundly pure sound reproduction without any impact of transmission loss.
The D/A converter for the CD-S3000 is the ESS Technology ES9018 SABRE™ Reference Stereo DAC. We selected this DAC after careful examination of all points—not only its high-precision processing of 32-bit audio, but also the ability to handle large amounts of audio data, strength in the low register and high-quality definition in the high register. Since it is constructed with the master clock inside the D/A converter, it is also features an original jitter eliminator function, permitting D/A conversion with extremely low impact of clock jitter. Moreover, an 8-channel D/A converter is housed inside the chip, and applies double differential operation using 4-channel D/A converters on the right and left sides respectively. It delivers exceptional high-performance and high-quality signal output with superior signal to-noise ratio, since it employs an analog signal processing circuit with balanced configuration.
With high-resolution audio sources becoming more and more common today, we designed the CD-S3000 for optimum enjoyment of those sources with superior D/A conversion and the unit’s balanced signal output, and equipped it with a built-in USB DAC function which allows direct input of digital audio (from a computer, etc.) through a USB terminal. The USB DAC employs an original IC, developed specifically for Yamaha. It has an internal master clock, and can perform low-jitter transmission based on asynchronous transmission, or receiving signals without being synchronized with the master clock in the PC. The unit is compatible with digital audio of up to 192 kHz / 24-bit resolution.
The CD-S3000 supports the ASIO 2.3 protocol to take full advantage of the sound quality of the USB DAC function. The ASIO 2.3 protocol is a standard protocol for professional use digital audio or DTM, with a significant sound quality benefit: the ability to achieve lower delay and higher throughput than with a standard OS sound driver. The driver software is the ASIO 2.3 Yamaha Steinberg USB Driver*, and allows high-quality playback of digital audio data stored to computer.
The CD-S3000 incorporates a special Pure Direct mode. When playing back analog audio, the display is turned off and the digital output circuitry is stopped, improving the quality of analog output. This enables a warmer, more natural sound with greater musicality, further enhancing the value of a fully balanced connection with the A-S3000.
As befits a top-end audio component, the CD-S3000 gives off the presence of a fine musical instrument, with absolutely no screws or fasteners that can be seen from the outside. Every single aspect of its construction and design exudes master craftsmanship and reflects an obsession with quality—a truly musical quality possible only for Yamaha, a world-class musical instrument manufacturer. The player with its refined design has been meticulously finished by skillful use of advanced processing technologies: integrating the top panel and side wood connection, leaving no gaps while using different materials—metal and wood—for the connection. On the CD tray, the gap between the front panel and the tray is uniformly precise. Moreover, the beautifully finished half-mirrored glass window of the display is precision-fit to the front panel smoothly without gaps—lending an exceptionally elegant appearance to the unit.
The speaker terminals are the final link in the audio chain of this amplifier and have also been designed with meticulous obsession. The screw-type terminals have large handles and feature an original design that has been crafted by cutting pure brass to enable a secure connection with no reduction in sound quality. Moreover, the shape conforms nicely to the human fingers—not only creating an elegant visual impression, but also allowing users to turn them easily and to firmly tighten them with minimal force.
The supplied remote control is designed in the same way as the aluminum panel of the CD player itself, with a simple, easy-to-understand button layout and gorgeous metallic texture. In addition to the basic CD track selection and play controls, it can also be used to adjust the volume and switch input sources on the companion A-S3000.
|Coaxial Digital Audio Inputs:||1|
|Coaxial Digital Audio Outputs:||1|
|Optical Digital(Fiber Optic) Audio Inputs:||1|
|Optical Digital(Fiber Optic) Audio Outputs:||1|
|File Formats:||SACD, CD, CD-R/RW (MP3, WMA), USB|
|Power On Consumption (watts):||30|
|Maximum Power||(8 ohms, 1 kHz, 10% THD) 130 W + 130 W / (4 ohms, 1 kHz, 10% THD) 210 W + 210 W|
|Minimum RMS Output Power||(8 ohms, 20 Hz-20 kHz, 0.07% THD) 100 W + 100 W / (4 ohms, 20 Hz-20 kHz, 0.07% THD) 150 W + 150 W|
|Dynamic Power/Channel||(8 / 6 / 4 / 2 ohms) 120 / 150 / 200 / 300 W|
|Damping Factor (8 ohms, 20 Hz-20 kHz)||250|
|Input Sensitivity/ Impedance||CD 200 mV / 47 kilohm, Phono MM 2.5 mV / 47 kilohm, Phono MC 100 μV / 50 ohms, Main in 1 V / 47 kilohm|
|Frequency Response||CD, etc. to speaker out, Flat position 5 Hz-100 kHz +0 dB / -3 dB, CD, etc. to speaker out, Flat position 20 Hz-20 kHz +0 dB / -0.3 dB|
|RIAA Equalization Deviation||Phono MM (20 Hz-20 kHz) ±0.5 dB / Phono MC (20 Hz-20 kHz) ±0.5 dB|
|Total Harmonic Distortion (20 Hz–20 kHz)||CD balanced to speaker out 0.025% (50 W / 8 ohms), CD, etc. to speaker out 0.025% (50 W / 8 ohms), Phono MM to Rec Out 0.005% (1.2 V), Phono MC to rec out 0.02% (1.22 V)|
|Signal-to-Noise Ratio[IHF-A Network]||CD, etc., (200 mV, Input Shorted) 103 dB, Phono MM (5 mV, Input Shorted) 93 dB, Phono MC (500 μV, Input Shorted) 85 dB|
|Residual Noise||CD, etc., IHF-A-Network|
|Channel Separation(1 kHz/10 kHz)||CD, etc., Input 5.1 kilohm Terminaled 74 dB / 54 dB, Phono MM, Input Shorted, Vol: -30 dB 90 dB / 77 dB, Phono MC, Input Shorted, Vol: -30 dB 66 dB / 77 dB|
|Tone Control Characteristics||Bass Boost / Cut (at 50 Hz) ±9 dB, Bass Turnover Frequency 350 Hz, Treble Boost / Cut (at 20 Hz) ±9 dB, Treble Turnover Frequency 3.5 kHz|
|Audio Muting||-20 dB (approx.)|
|Load Impedance||If you use two sets (A and B), the impedance of each speaker must be 8 ohms or higher.|
|Dimensions (W x H x D)||17-1/8” x 7-1/8” x 18-1/4”|
|Product Weight (lbs.)||42.3|
|Frequency Response||SACD 2 Hz-50 kHz (-3 dB), CD 2 Hz-20 kHz|
|Remote Control Included||Yes|
|Analog Audio(RCA) Output||1|
|Color Finish Name||Black|
